Processes

At its core a process is a way of structuring your players interactions with the game. You can create a simple linear sequence of activities for a player to do or complex choice driven quests.

Processes are the most powerful component available to you in a game. They make it possible to create complex and flexible player journeys. The way you use processes depends on the type of gamified system you wish to make.

There are several benefits you can reap from well defined processes within a game:

1. Sketching out the player journey as a process forces us to think through the actual player experience. We can put ourselves in the player's shoes, and that helps us design better experiences.
2. Processes enable you to change the player experience and see the impact immediately in the game.
3. Breaking down an activity into many short steps enables the player to receive feedback on each step. This increases the probability of a player making it through the entire process especially if its long.
4. Processes make it easy for us to find out which step of a activity causes people to get stuck or give up. We can then use that insight to improve the player experience.
5. Finally processes enable you to create external games much faster. Playlyfe takes care of all the complex state transitions and player progress tracking.

Use Cases

Processes are great when you need to create things like skill trees. In the context of an online education platform, good skill trees encourage players to learn and allow them to build their own skill set as per their interests. The process of guidance can be very easily tweaked and tested with Playlyfe.

With features such as Lanes and Escalations, processes work well for role based activities too. In an organization, processes are generally well defined and often involve people with different roles, which makes processes in playlyfe a natrual fit.

Building a Process

A process consists of a set of nodes connected together with a set of flows. There are 4 types of nodes that you can create in a process:

1. Task

   These are the bread and butter of a process. A task can be any activity that you wish your players to perform. All the other nodes are just helpers to control the order in which tasks can be performed. A task can have only 1 incoming flow (in-flow) and 1 outgoing flow (out-flow).

   Basic Task Properties
   Property	Description
   ID	A unique ID for the task within the process/sub-process
   Name	A name for the task
   Loop Count	The number of times a player can loop over the task. [default: 0]
   Lane	The lane to which this task belongs

2. Sub-Process

   A sub-process is almost the same as a process. You can use sub-processes to model complex processes which are big and difficult to visualize. You can also use it to break down the player journey into different modules.

   Basic Sub-Process Properties
   Property	Description
   ID	A unique ID for the sub-process within the process/sub-process
   Name	A name for the sub-process
   Instance Key	A unique key which identifies this sub-process from all other sub-processes within the process. You can use this to access a particular sub-process within a complex process from the API.
   Loop Count	The number of times a player can loop over the sub-process. [default: 0]
   Lane	The lane to which this sub-process belongs

3. Parallel Gateway

   Diverging parallel gateways allow a player to perform many different task in any order they wish (i.e., in parallel).

   A diverging parallel gateway has more out-flows than in-flows.

   Converging parallel gateways allow a player to proceed along the out-going flow only after they complete all in-flows. It provides a way of synchronizing different paths of progress before moving forward.

   A converging parallel gateway has less out-flows than in-flows.

   Basic Parallel Gateway Properties
   Property	Description
   ID	A unique ID for the gateway within the process/sub-process
   Name	A name for the gateway
   Lane	The lane to which this sub-process belongs

4. Exclusive Gateway

   Diverging exclusive gateways allow a player to perform exactly one task from among the many available alternatives.

   A diverging exclusive gateway has more out-flows than in-flows.

   Converging exclusive gateways allow you to merge progress along different paths together.

   A converging exclusive gateway has less out-flows than in-flows.

   Unlike converging Parallel gateways, converging Exclusive gateways allow players to proceed along it's out-going flows before they complete all in-flows.

   Basic Exclusive Gateway Properties
   Property	Description
   ID	A unique ID for the gateway within the process/sub-process
   Name	A name for the gateway
   Lane	The lane to which this sub-process belongs

Connection Restrictions

Building processes using nodes and flows is fairly straight forward, however, there are some restrictions:

• Tasks/Sub-Processes can only have 1 out-flow and 1 in-flow
• Gateways can be either converging or diverging.
  • Diverging gateways have atmost 1 in-flows and atleast 1 out-flows
  • Converging gateways have atmost 1 out-flows and atleast 1 in-flows

Start Nodes

All nodes without any in-flows in a process are called Start Nodes. When a player starts a process, the very first tasks available to him are the Start Nodes in a process.

Common Flow Patterns

There are a lot of things you can achieve with processes, from designing approval systems, to parallel quests and more! We illustrate some of the most common flow patterns below:

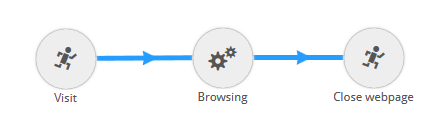

Linear Flow

You can use this flow to model a linear sequence of activities which the player must perform.

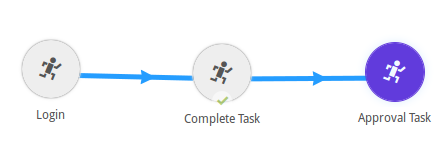

Approval Flow

You can use this flow to model a simple approval mechanism. In the diagram, only candidates of the admin lane can perform the approve task. When a player finishes the approve task it resolves the scoring actions on the work task.

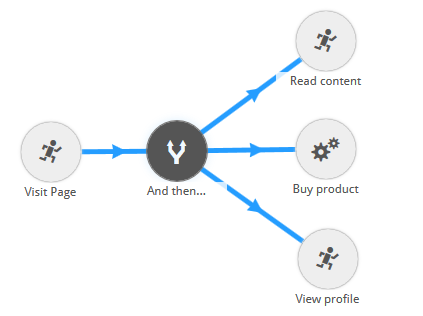

Parallel Split Flow

You can use this flow to model many choices available to a player which the player can perform in any order.

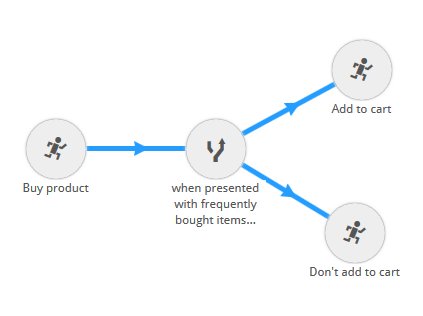

Exclusive Choice Flow

You can use this flow to model many choices available to a player out of which exactly they can perform exactly one choice.

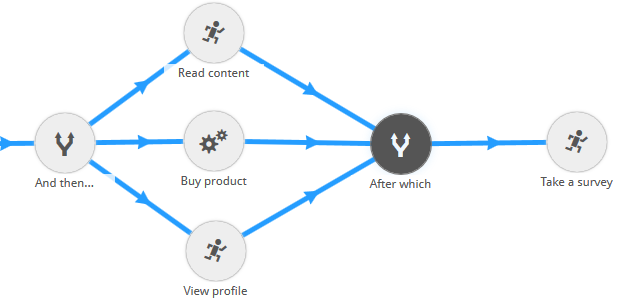

Synchronization Flow

You can use this flow to synchronize several paths that a player could take at a common point before moving forward.

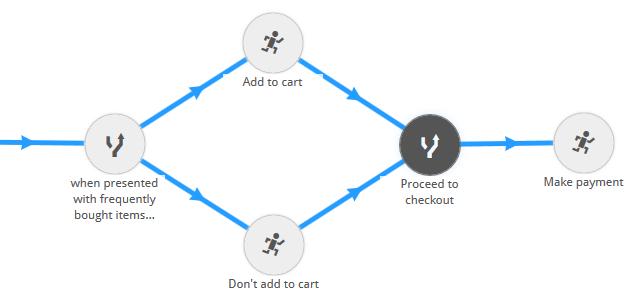

Merge Flow

You can use this flow to merge several paths a player could take at a common point. It allows the player to move forward without finishing all incoming paths.

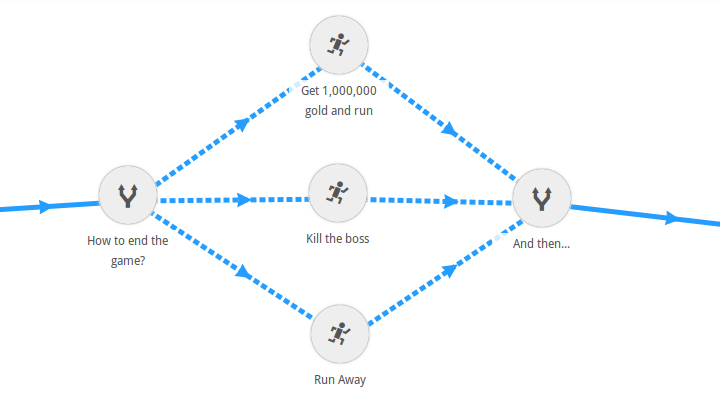

Cancelling Merge Flow

You can use this flow to merge several paths a player could take at a common point. As soon as the player reaches the common point, all tasks on incoming paths are cancelled. Players cannot complete a cancelled task.

Sub-Processes

Sub-Processes are an effective way to manage arbitrary complexity within your processes. Sub-Processes are like small processes within a larger one. There are a few things you need to know to work with sub-processes.

Task IDs in Sub-Processes

Sub-Processes add a new context for your tasks. This means that two different sub-processes can have tasks with the same IDs within them. This can be useful for repeated tasks across many sub-processes.

Navigating Sub-Processes

• Hover your mouse over the sub-process.
• Click the expand icon which pops up (1).

You will now see the internal details of the sub-process. You can see a breadcrumb which appears at the bottom of the showing the root process at the leftmost end and the sub-process to its right. You can click on any part of the breadcrumb (2) to navigate to that sub-process.

Lanes

Lanes are a restricting mechanism used to divide the tasks within a process among different types of players. This allows you to co-ordinate complex activities between many different teams of players.

Candidates of a lane are eligible to perform tasks/sub-processes/gateways belonging to that lane. Players can be a part of multiple lanes and cannot perform tasks in lanes they are not a part of.

You can combine lanes with resolution to create an approval mechanism.

Rate Limiting

Playlyfe allows you to control the rate at which any task or sub-process within a process can performed. You can use this to create an effective an anti-gaming mechanic which prevents players from abusing your system. You can also use it to effect scheduled daily, weekly or monthly tasks.

There are 3 different types of rate limits that can be applied, they are:

1. Rolling Window - A moving window type rate limit essentially means that at any given point in time, the activity can only be done a specified number of times in the last interval. Let us say your rate limit is 5 times per day, this would translate to a limit of 5 times in the last 24 hours (more precisely, in the last 24x60x60x1000 milliseconds) at any given point in time. Since we need to store timestamps for each event, there is a limit of 50 events in an interval. This is the default algorithm.

2. Fixed Window - In a fixed window rate limit, the windows are fixed at particular time intervals - minutes, hours, days, weeks, months and years. What this means is that if your rate limit is 5 per day, the activity can be performed 5 times in a calendar day. In this alogirthm, the game's timezone is used to figure out calendar limits. The interval unit has been restricted only to 1 (i.e. 5 times in 1 day, in 1 minute, etc) as some other values can lead to unexpected results.

3. Leaky Bucket - The leaky bucket algorithm, though generally used in the world of networking, might also find use in games. You can read more about it here.

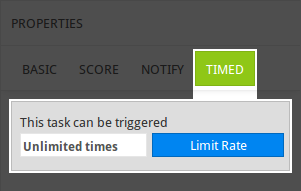

Rate Limiting a Task/Sub-Process

• Select the task/sub-process you wish to rate limit.

• Click the Timed tab in the property window of the node.

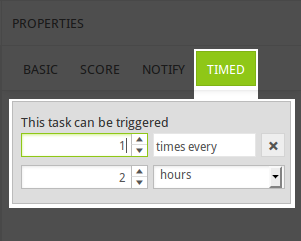

• Click the Limit Rate button and specify the rate you want to cap the task/sub-process at.



Trigger Emails

Triggers emails enable players to interact with a process through their email.

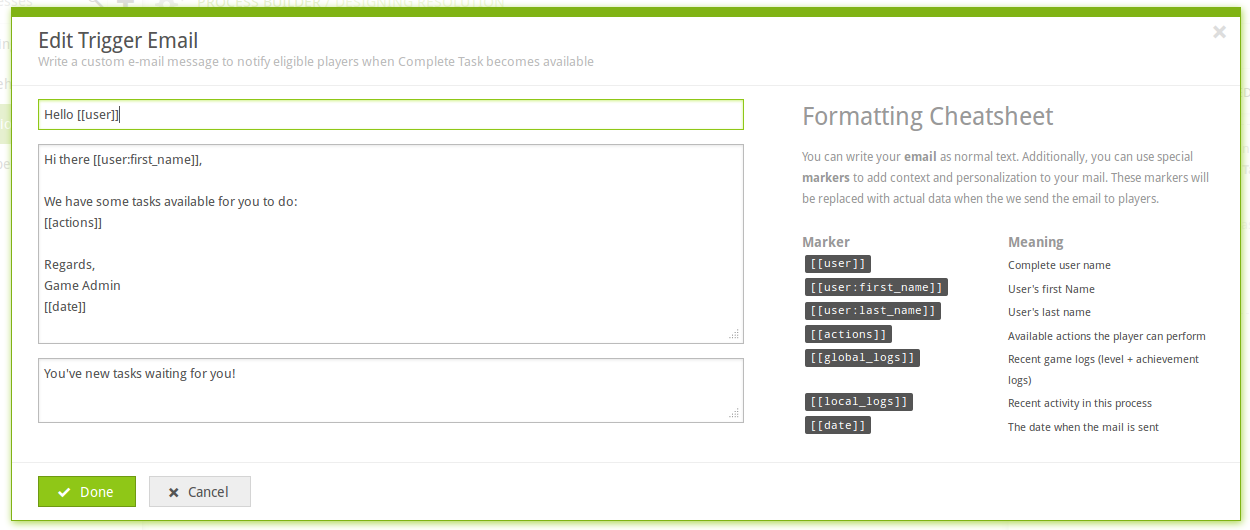

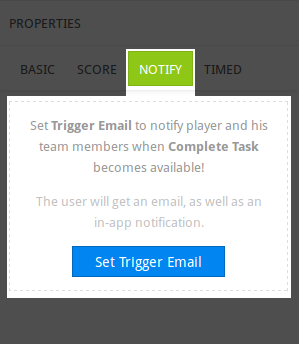

Setting up a trigger email

• Select a task/gateway and go to the Notify tab

• Click the Set Trigger Email button



• Write the trigger email template and notification message.



You can customize the email itself with simple tags to provide contextual information.

Playlyfe sends an email whenever a node with an trigger email is completed. The recipient of the email can be set by using the following options:

1. Target The Target can be set to either one of these options.

   Option	Description
   Myself	Sends an email notification to the player who completes the task.
   Teammates	Sends an email notification to the teammates of the player who completes this task.
   Members of this process	Sends an email notification to all members of this process.
   Teammates of all members of this process.	Sends an email notification to all the team members of all the performers of this process.

2. Target Requirements In addition to the above, additional conditions can be specified in target requirements.

If the email had triggers and the recipient was not a performer in the process, he can be added into the process. The lanes and roles he joins with can be defined in target roles. He can then act on a trigger email by replying with the number specifying the action they wish to take on the trigger.

Scoring

A task/sub-process can have multiple rewards which take place when they are completed. Rewards change the scores of the player who performed the task/sub-process.

Advanced Scoring Mechanics

Besides the normal simple scoring mechanism, Playlyfe provides you a number of advanced scoring mechanics which can be used to make complex gamified experiences.

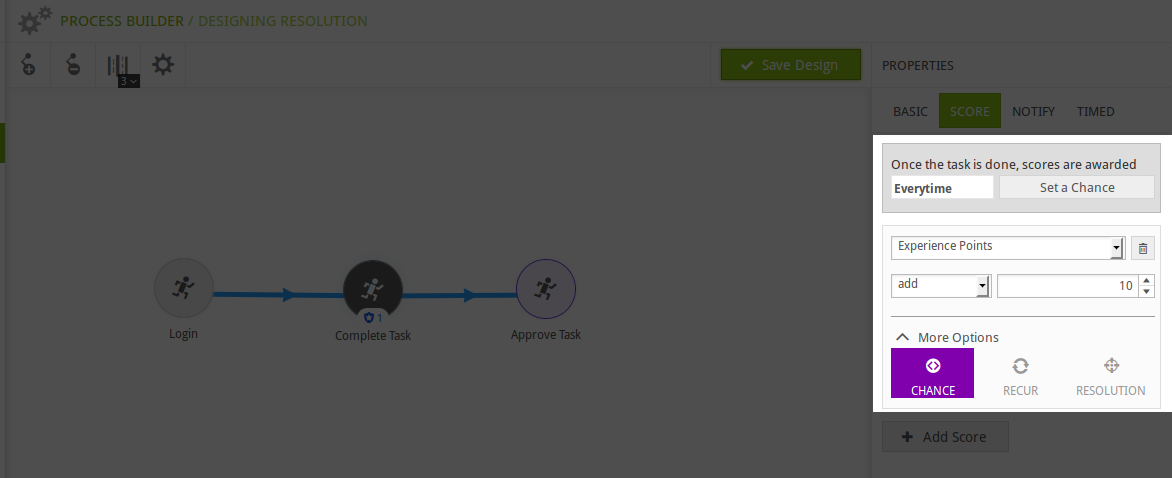

Chance

When a player completes a task the scoring actions associated with it are always applied to the player. Using the chance mechanic you can specify the probability of Playlyfe applying a reward.

There are 2 types of chance mechanics currently:

1. Activity Reward Chance - This is the probability of Playlyfe trying to apply the rewards of an activity. If the activity has no rewards this does not have any effect. You can do this if you have many rewards on an activity and wish to have Playlyfe always apply them together.

2. Individual Reward Chance - This is the probability of Playlyfe applying an individual rewards to a player. You can do this if you want to set a different chance for applying each reward on the completion of an activity.


You can combine both Activity Reward Chance and Individual Reward Chance together on a single activity.

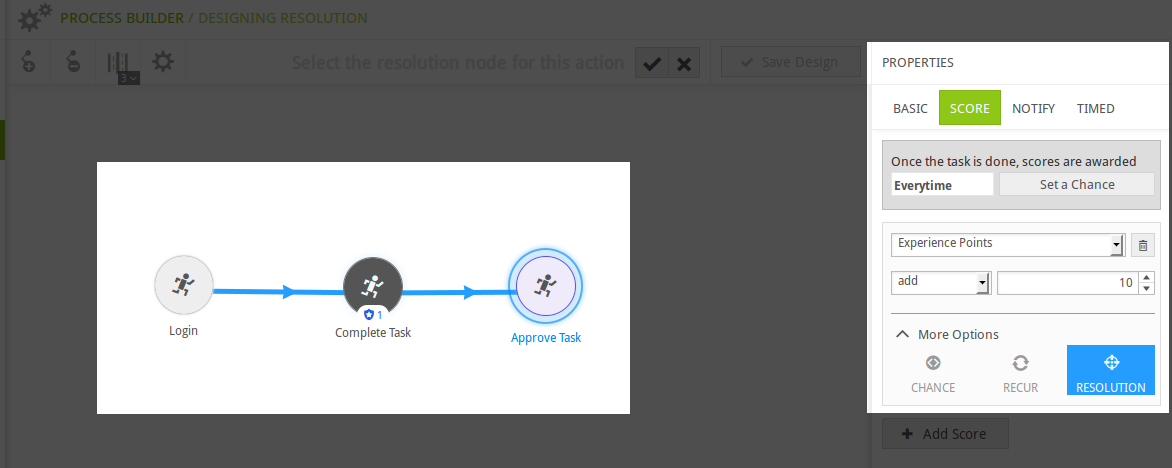

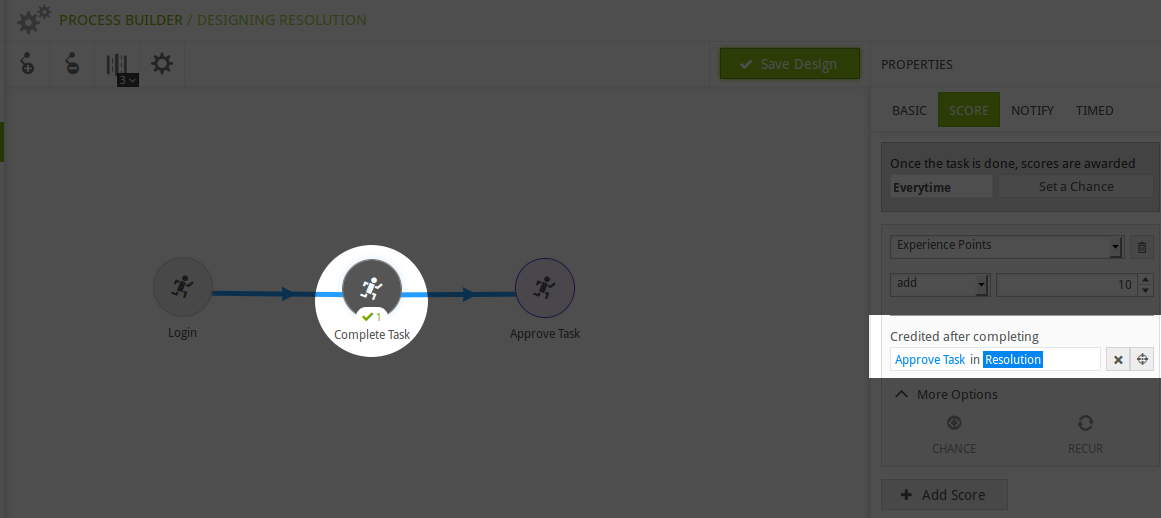

Resolution

You can use scoring resolutions to delay the application of rewards on a player. Instead of applying the rewards on completion of a task you can specify a second task as the resolution task for the reward.

Playlyfe resolves the reward and applies it to the performer of the first task once a player completes the resolution task .

The resolution mechanic can be combined with lanes to create an approval flow

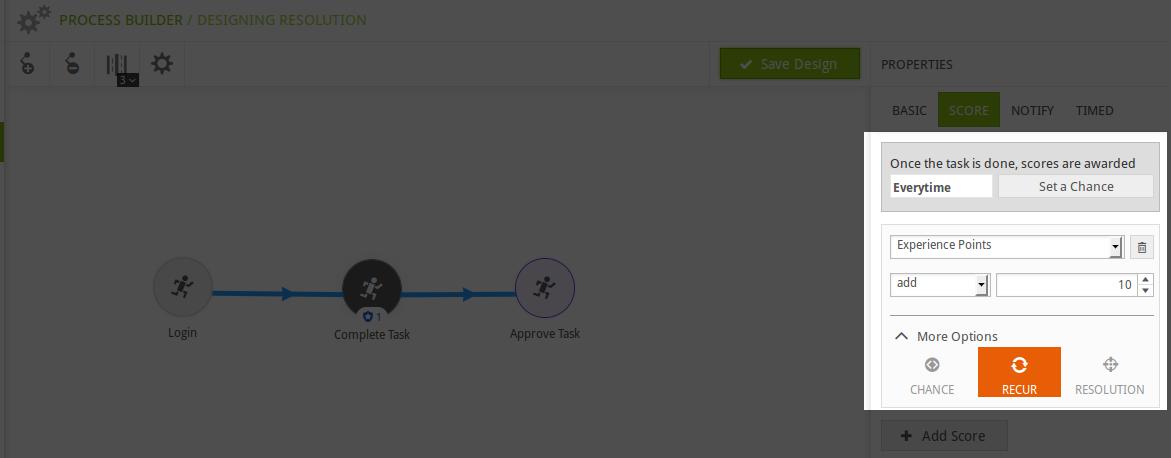

Recurrence

Recurrence is a mechanic which only works with looped tasks. Usually, Playlyfe applies the reward on a looped task only once the task has been completed. A looped task is considered to be complete only after all it's loops are complete. Sometimes this is not the desired behavior. You may wish to apply the reward on every loop of the task. This can be done by marking the reward as a recurring reward.

Scopes

Scopes let you create leaderboards for an arbitrary group of players. These are particularly useful when you want to create groups based on the source of an event.

Scopes are available only from Playlyfe API v2.0

Consider a class in which students are being offered various optional courses. Each course has quizzes which on completion grant rewards to the students. To maintain a leaderboard for any given course, instead of creating teams for each course, you can simply pass the course's name or any other unique identifier as the scope and a leaderboard for that course will be created on the fly. This leaderboard will only track actions/rules/processes that have been performed with the given scope.

Scopes are currently available only via API and are not available in the simulator and would need a custom leaderboard in the design of the game. When executing an action, rule or task, you need to pass the scopes an array of objects with a keys id and entity_id. The id is the actual scope ID and the entity_id is the ID of the player who is being scored.

Joining Channel

Joining channel basically lets you manage how other players can join a process. There are 3 choices:

1. Free To Join - The process is visible and anyone can join it with any role and lane.
2. Request Based - The process is visible but players need to request access to join the process.
3. Invite Only - The process is not visible to players who are not a part of the process. Players can only join via invitations.

Creation Requirements

Conditions that the player must satisfy in order to be able to create a process instance.

Restrictions

Restrictions can be set on the process creation itself. These restrictions can be either per player restrictions or global restrictions.

1. Process Limit - Limit the maximum number of process instances created. Default: Infinity
2. Active Process Limit - Limit the number of maximum active processes that can exist at any given point. Default: Infinity

Related API

• Process Design API
• Process Runtime API
• Process Admin API

Design Structure

There are two parts to a process:

1. the design, which we call the definition of the process, and
2. the instance, which is created by the players when they are in the game

Both the definition and the instance have very separate structures. The definition structure is as follows:

Process Definition Structure

The design structure is what is used when you are making the process.

Settings Structure

Creation Requirements Structure

This allows certain checks to be performed to make sure a player can actually see/perform/join the task, action, team.

Metric Based Condition

Condition which depends on a player's score for a particular metric

Example:

Action Based Condition

Condition which depends on how many times an action has been performed.

Example:

Team Based Condition

Example:

All Conditions: and

Example:

Any Condition: or

Example:

Lanes Structure

Activity Structure

Activities are the tasks or sub-processes within a process. They can have rewards attached to them.

Gateway Structure

Gateways are used to restrict access to certain tasks and sub-processes based on the process state. They cannot have rewards on them.

Sequence Flow Structure

Sequence flows are lightweight objects which connect other nodes (activities, gateways) to each other. Each sequence flow has a source node and a target node.

Process Instance Structure

Containers

They represent processes or sub-processes. They must contain a field key which must be unique.

Process Instance Task Structure

Process Instance Gateway Structure

Examples

Process

Process with Subprocess
